Foldable Gabion Boxes Made of Welded Wire Grids and Panels for Reinforcing

Structure of Welded Mesh Gabions:
This gabion product is made by welding transverse and longitudinal wires at each intersection to form a grid and dimensionally stable panels. Every two neighboring panels are tied together by spiral steel wire. Then it can be used until riprap or loose stones are placed in.

Materials and Treatment:
Galvanized wire is the most popular choice for gabions of most applications. Thick corrosion-resistant zinc coating separates interior steel wire from external environments. Besides, PVC coated wire and stainless steel wire are used to extend life expectancy of welded gabion boxes.

Applications:
Welded gabion boxes are used for various reinforcing and guarding uses in river banks, roads, retaining wall, highways or gardens.

Features and Benefits of Using:

  • Welded wire gabions are made of welded wire fabrics. This kind of wire mesh containers are uniformly welded and can be supplied of various sizes.
  • The gabions can be connected with other similar containers and filled with stone to form flexible and permeable structures for retaining of riverbank and soils.
  • The steel wire for making of welded mesh gabions is cold drawn high tensile steel wire with zinc coating. It is strong and rigid for uses.
  • Gabions made of welded wire fabrics offer much strength compared with woven wire gabions while they have similar flexibility.
  • Modularity size gives prompt action and saving labor energy and time. Installation on job site is very quick. Resistant to being washed away by moving water.
  • Decorating your property, garden or yard at the same time reinforcing the structure.
  • Custom shapes and sizes are provided on special order. Available in various shapes to change with ground movement.

Specification of Welded Grid Gabions:

Length (ft.) Width (ft.) Height (ft.)    Loading Capacity (yd3)
6'-0" 3'-0" 3'-0" 2
9'-0" 3'-0" 3'-0" 3
12'-0" 3'-0" 3'-0" 4
6'-0" 3'-0" 1.5' 1
9'-0" 3'-0" 1.5' 1.5
12'-0" 3'-0" 1.5' 2
6'-0" 3'-0" 1'-0" 0.67
9'-0" 3'-0" 1'-0" 1
12'-0" 3'-0" 1'-0" 1.3
6'-0" 6'-0" 3'-0" 4
9'-0" 6'-0" 3'-0" 6
12'-0" 6'-0" 3'-0" 8
6''-0" 6'-0" 1.5' 2
9'-0" 6'-0" 1.5' 3
12'-0" 6'-0" 1.5' 4
6'-0" 6'-0" 1'-0" 1.3
9'-0" 6'-0" 1'-0" 2
12'-0" 6'-0" 1'-0" 2.7
3'-0" 3'-0" 3'-0" 1
3.5' 3'-0" 3'-0" 1.5
6'-0" 4.5' 3'-0" 3
9'-0" 4.5' 3'-0" 4.5
12'-0" 4.5' 3'-0" 6

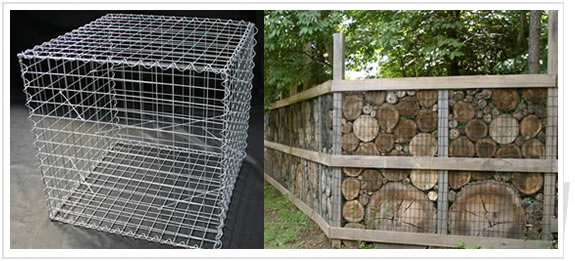

Welded Grid Panel Gabions
Grid Panels for Welded Gabion Box

Wire Tying Gabions
Welded Wire Grid Panels Gabions, Used for Bridge Construction

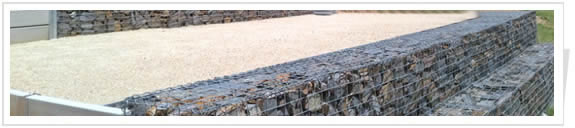

Gabion Boxes for Park Structure

Gabions for Yard Decoration and Building
