Gabions Wire Fence

Gabions are Wire Cuboid Baskets filled with stones or other mortar. The gabion wires are placed one on the other, like bricks, to form a wall or a more complex structure for fencing or barrier uses. Once assembled, the Gabions Wall Fencing are aesthetic, resistant and simple. Gabions are very effective way of fencing as they are built with the usage of the local stones quickly and economically. The gabion fence fit well to the surrounding areas. The stone can be of any size, from round bounders to large pebbles to broken angular, which may differ according to the needs and supply.

Gabion fence can be set from different modular of galvanized steel wire baskets / cages being assembled in situation. See illustrations below. The gabion cages can be designed to form various types of gabion fences. Varieties can be made from the thickness to the mesh pattern.

Illustrations of Different Sizes of Wire Baskets for Building the Gabion Wall Fence:

Baskets for Laying Gabions Wall

Metal Gabion Baskets

Modular Wire Mesh Baskets for Fencing Structure
40x40x15cm Baskets 80x40x15cm Baskets 80x40x30cm Baskets
In some site, the natural appearance of the gabion fence can be enhanced by the addition of elements or water features. This way the same filling material can achieve different effects.

Design of Gabion Fencing:
The wall consists of concrete base, approximately 40 centimeter high and deep, strong enough to protect the wall from vehicles but not huge enough to dominate the vision of the wall. Then the gabion cubes are placed to form the module of the wall. Each side of the module is framed with a steel pole in order to increase the resistance and stability of the fence.

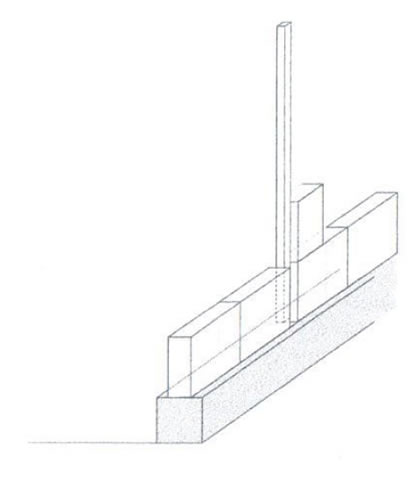

Structural Illustration of the Fence:
Structure of Gabion Fences

Aerct supplies the galvanized steel wire gabion fence including gabion bench and gabion gate for the archaeological site and other sites uses.

Popular gabion wall fence system as follows:

Gabion Fencing, Spec: 3 mm or 4 mm Galvanized steel wire or corrosion protected iron, steel etc.

Gabion fencing including one gate and one bench, fence height 1 Mtr
Qty: 123 Mtr Fencing

Gabion fencing including one gate and one bench, fence height 1.5 Mtr
Qty: 123 Mtr Fencing

Gabion fencing including one gate and one bench, fence height 1 Mtr
Qty: 322 Mtr Fencing

Gabion fencing including one gate and one bench, fence height 1.5 Mtr
Qty: 322 Mtr Fencing

Gabion Bench:
Gabion cage can be used to design different kinds of furniture to be used on the site. The examples below illustrate the possible combination of wood, stones and cages which are consistent with the design of gabion fencing proposal. The stones shall be provided from limestone resources of the island.

Proposed dimension of gabion bench: 50cmx50cmx15cmx45cmx120cm

Gabion boxes filled with limestone to form a bench
