Woven Mesh Gabion Containers for Stones and Gravel Holding Structure, Meeting Standard ASTM A975-97.

Gabion Containers Structure:

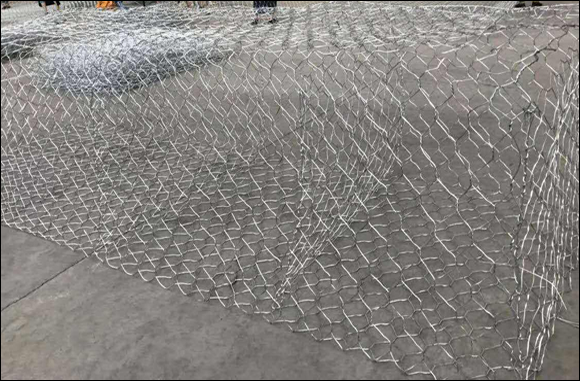

The containers are formed with pieces of twisted wire mesh into a rectangular or square shape before putting stone into the cage. The mesh is hexagonal opening galvanized / pvc coated / zinc coated double twist mild steel wire mesh. The container box shall be supplied in various length, width and heights. All edges of the structure are selvedged with lacing wire with thicker diameter.

Wire Materials:
Galvanized, PVC-coated galvanized and stainless steel wire are often used in gabion container making. These materials will not rust in damp and corrosive environments.

Standards Followed:
The wire mesh used in Gabions production strictly conforms to EN10223-3 and gabions also meet the requirements of ASTM A975-97.

All wires used in Gabion Containers and lacing wire have the tensile strength of 350-500N/mm according to EN10223-3, 2 BS1052/80 and ASTM A641-97. (The figures above are of the wire prior to manufacturing mesh).

Galvanized Mesh Gabions

Application:
Gabion basket containers are often used in civil engineering, retaining walls, slope reinforcement, residential and commercial areas with the features of good flexibility, economy, permeability and durability.

Common sizes of Gabion Containers as follow:

Standard size (m) Mesh size (mm)
80x100 60x80
Length Width Height Galvanized or PVC coated Galvanized or PVC coated
  Wire diameter Zinc coating Wire diameter Zinc coating
2m 1m 1m 2.7mm >245g/m2 2.0mm >215g/m2
3m 1m 1m Diameter of edge wire Zinc coating Diameter of edge wire Zinc coating
4m 1m 1m 3.4mm >265g/m2 2.7mm >245g/m2
6m 1m 1m Diameter of binding wire 2.7mm Diameter of binding wire 2.0mm

Mesh Containers with Zinc Plating

Hexagonal Hole Twisted Mesh for Gabions Making

Mesh Materials for Gabions Manufacture:
Hexagonal Wire Mesh Types:

Hot-dipped after weaving
Galvanized before weaving
Pvc-coated
Stainless steel hexagonal mesh

Galvanized hex. wire mesh in normal twist (width of 0.5M-2.0M)
Mesh Wire Gauge (BWG)
Inch mm
3/8" 10mm 27,26,25,24,23,22,21
1/2" 13mm 25,24,23,22,21,20,
5/8" 16mm 27,26,25,24,23,22
3/4" 20mm 25,24,23,22,21,20,19
1" 25mm 25,24,23,22,21,20,19,18
  32mm 22,21,20,19,18
http://www.gabbioni.net/image/134.jpg 40mm 22,21,20,19,18,17
2" 50mm 22,21,20,19,18,17,16,15,14
3" 75mm 21,20,19,18,17,16,15,14
4" 100mm 17,16,15,14



Galvanized hex. wire mesh in reverse twist (width of 0.5M-2.0M)
Mesh Wire Gauge(BWG) Reinforcement
Inch mm (BWG) Width(ft) Strand
1" 25mm 22,21,20,18 2' 1
http://www.gabbioni.net/image/132.jpg 32mm 22,21,20,18 3' 2
http://www.gabbioni.net/image/134.jpg 40mm 20,19,18 4' 3
2" 50mm 20,19,18 5' 4
3" 75mm 20,19,18 6' 5



Hex. wire netting PVC-coated (width of 0.5M-2.0M)
Mesh Wire Dia(mm)
Inch mm
1/2" 13mm 0.9mm,0.1mm
1" 25mm 1.0mm,1.2mm,1.4mm
http://www.gabbioni.net/image/134.jpg 40mm 1.0mm,1.2mm,1.4mm,1.6mm
2" 50mm 1.0mm,1.2mm,1.4mm,1.6mm
